Create new dashboard

To create a new dashboard, click on the Create Dashboard button on the toolbar.

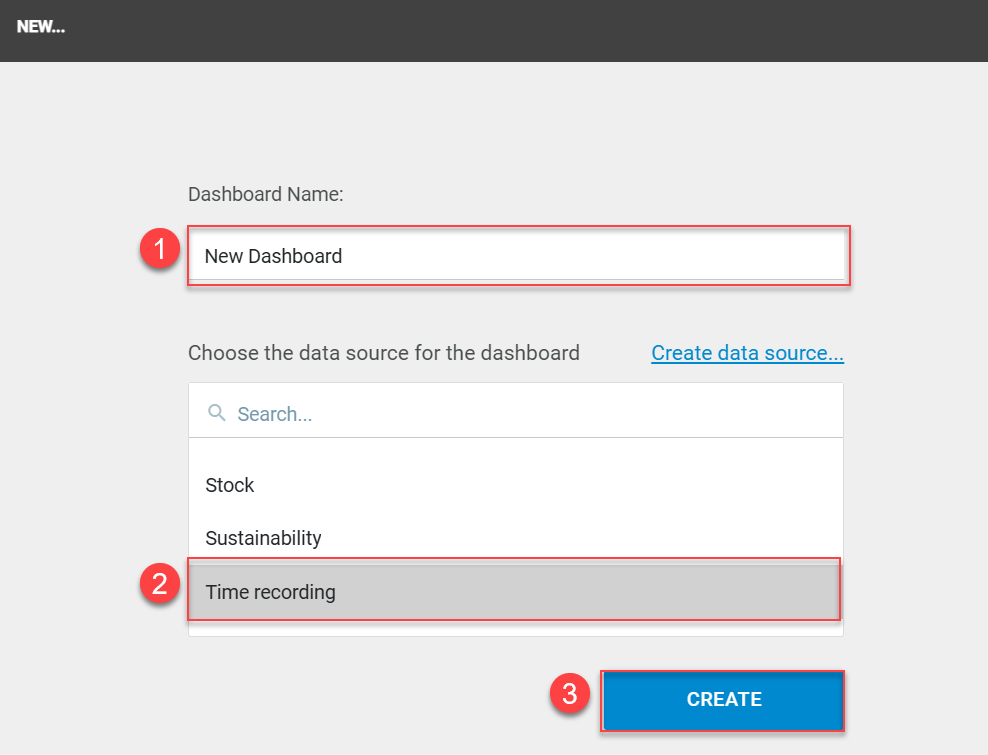

This button opens a dialog to create a new dashboard. Start with adding a name for the dashboard (1). This will be the name in the menu, and shown in the header of the dashboard. Then you select the primary data source for the dashboard (2). You will be able to add more data when the dashboard is saved. Click on Create (3) to save the dashboard in the database.

The new dashboard will then be opened in Viewer Mode. Read more about Viewer mode.

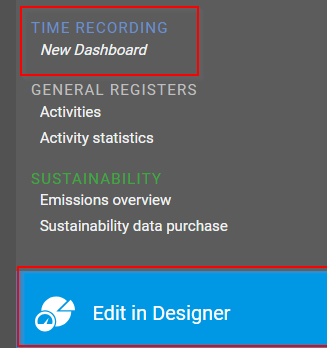

To open and edit the new dashboard in Designer Mode, just click on Edit in Designer in the bottom left corner.

Please note! Only the standard dashboards and data sources delivered by Monitor ERP System AB are included in the support services. If you need help creating custom dashboards or wish to purchase additional support services, please contact a consultant at Monitor ERP System AB or the Monitor Support Center using this page or call +46 650 766 03.
